DPSI MICRO EMCOTEC

DPSI Micro – MPS RV (Magnetic Power Switch – Regulated Voltage)

Miniature LiPo-regulator with magnet switch transmitter and selectable output voltage!

  Electronical switch with voltage regulator for 5/6cell NiCad/NiMH, as well as LiIon/LiPo batteries
  Regulated output voltage for receiver and servos irrespective of the used battery (5.5 volts or 5.9 volts adjustable)
  Power regulator for a constant output voltage with high peak current capability
  Complete contactless switching operation with an external magnet
  Intelligent voltage monitoring with optical error indication
  Suitable to all battery types due to low drop out technology
  The used battery type can easily be programmed (and therefore the correct low voltage detection)
  JR/Uni-connectors with high grade silicon wires (AWG20 cross-section)
  Integrated charging cable
  Suitable for small models (F3A, helicopters, gliders)
  Designed for 5 up to max. 10 servos
  3A continuous current and 25A peak current
  Enlarged heat sink for better heat dissipation

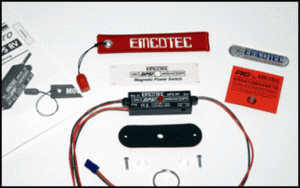

Delivery includes magnetic switch actuator with keyring pendant , 2 pcs. spare part magnets, screws, sticker for the fuselage (drilling jig), EMCOTEC 3D sticker, operating instructions
